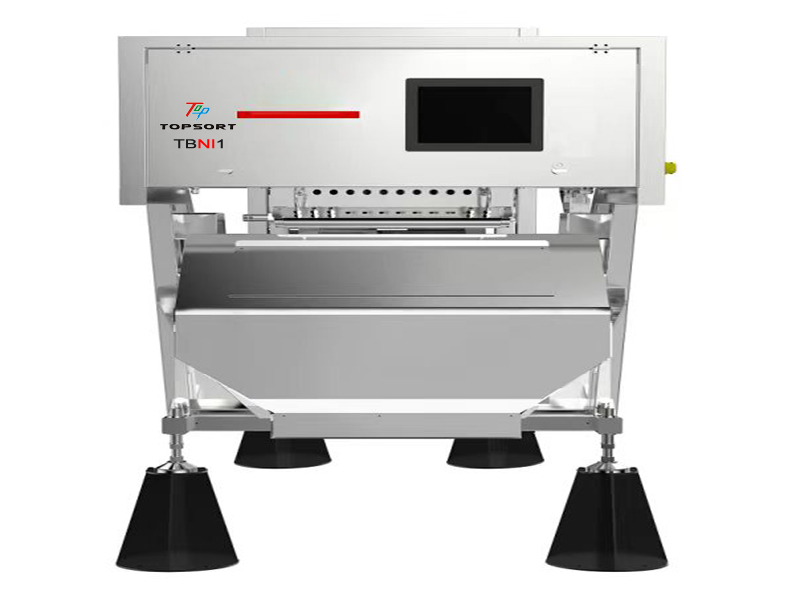

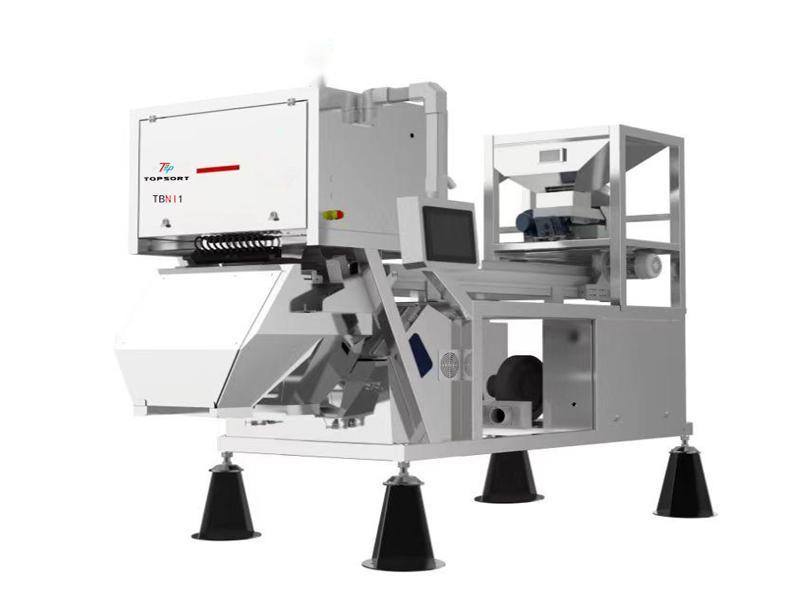

Belt type infrared color sorter for sorting almond walnut kernal and shell

Belt type infrared color sorter for sorting almond walnut kernal and shell

This belt infrared color sorter is specially designed for sorting same color different materials. also with color sorting function.So it is multi-dimensional cameras with CCD camera and InGaAs camera.

Are you interested in this product? Welcome to send us a message~



  • Order(MOQ) :

    1
  • Payment :

    TT/LC
  • Product Origin :

    Hefei,China
  • Color :

    White,can customize
  • Shipping Port :

    Shanghai/Ningbo
  • Lead Time :

    Within 10 working days
  • Certificate :

    CE
  • Product Name :

    Infrared color sorter
  • Warranty :

    2 years
  • Machine Function :

    Color sorting,Shape sorting,Material sorting

Infrared Color Sorter Working Principle

Infrared color sorter utilizes the infrared light spectrum to sort materials. It works based on a series of steps that include:

1.Feeding: Materials to be sorted are fed into the machine.

2.Separation: The materials are separated based on the type of material they are and their size. This step ensures that the materials are properly spaced and positioned for the next step.

3.Imaging: The materials are imaged as they pass through a conveyor belt. An infrared camera captures images of each material as it passes through the belt. The camera is sensitive to different wavelengths, and it detects the color differences in each material.

4.Analysis: As the materials are being imaged, the computer analyses the images and determines the appropriate sorting path based on the material's color. It uses filters to isolate the material's color from the background or other interfering colors.

5.Ejection: After analysis, the machine directs a jet of forced air to blow the undesirable materials away from the desirable ones. These materials are sorted according to their colors and ejected into different storage bins.

6.Collection: The sorted materials are collected in different bins for further processing or sale.

7.Overall, the operation of an infrared color sorter machine is automated, precise, and efficient. It ensures uniform sorting and reduces errors, resulting in high-quality products.





Infrared Color Sorter Features

1.High Sorting Accuracy: Infrared color sorters use advanced sensing and digital processing technologies to achieve high sorting accuracy. They can accurately separate even the smallest variations in shade and color.

2.Multiple Sorting Modes: These color sorters come equipped with multiple sorting modes, including shape, size, and color sorting, which allow users to sort a variety of different materials.

3.Easy to Use: The sorting process is fully automated, which makes it easy to use for both skilled and unskilled operators.

4.Large Capacity: Infrared color sorters feature a large capacity, which allows them to process large volumes of material in a short amount of time.

5.Reduced Waste: These color sorters help reduce waste by accurately separating and removing unwanted materials from the processing line.

6.Low Maintenance: Infrared color sorters require very little maintenance, making them a cost-effective solution for processing facilities.

7.Enhanced Productivity: The sophisticated sorting technology used in infrared color sorters allows for increased productivity, leading to higher yields and profitability for the processing plant.



 Technical Parameters

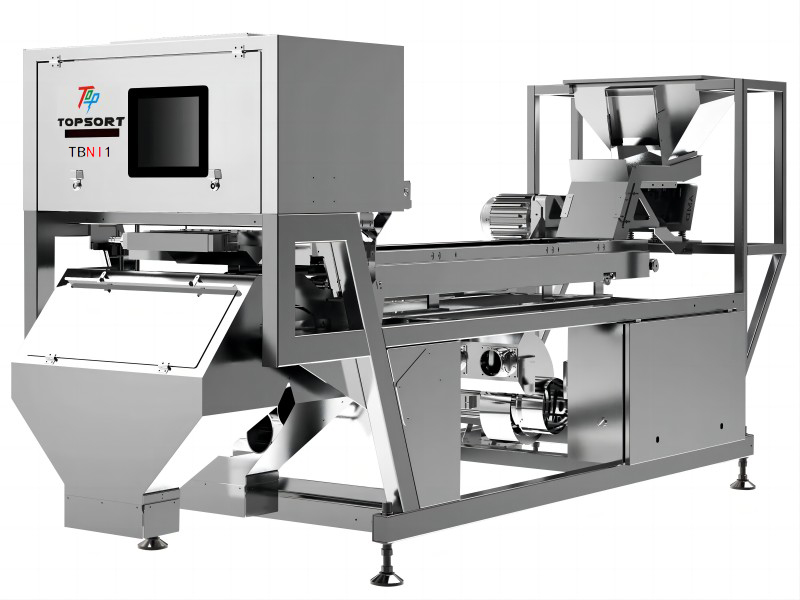

Belt infrared sorting machine



Model TBNI1
Channles 64
Power 1.3kw
Weight 330kgs
Dimensions 3115*1130*1872mm
Power voltage 380V/50HZ
Sorting accuracy 99.9%
Capacity 500-1000kg/h
Air consumption <1.5m3/min
Air pressure 0.6-0.8Mpa



Superb Nuts Sorting Sulotions

 pecan color sorter

Almond color sorter

 walnut color sorter



pistachio color sorter

Hazelnut color sorter

color sorter

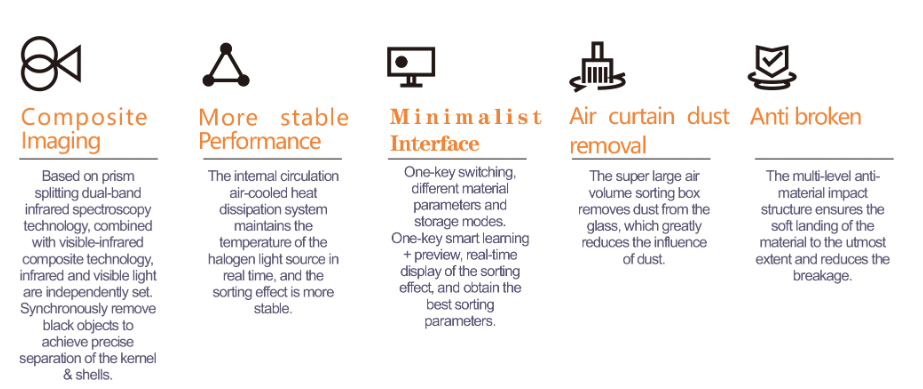

TOPSORT Infrared Color Sorter Technology

color sorter technology

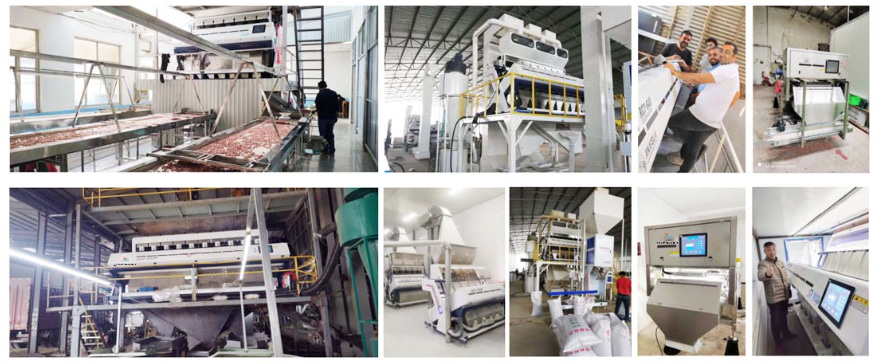

Case Studies



color sorter project

Why Choose TOPSORT Color Sorter

Top technology

♣ Ultra HD imaging technology to see subtle defects with 4 times higher resolution;

♣ High computing power deep learning platform with 4 times more data processing power;

♣ Light source processing system, a unique three-color free switching background plate, the light source can be freely and flexibly switched, suitable for selecting different particles and sheet materials;

♣ Intelligent operation platform, easy to operate, easy to grasp the real human-machine dialogue, intelligent docking;

♣ Perfect after-sales service with big data + cloud interconnection.

Top quality

Equiped with imported famous brand key components to guarantee the reliability.Professional production team, each step is inspected by professional quality inspectors before moving on to the next process Before shipping the machine,our engineer will test and save parameters,make sure they are in good condition.

Free Training

We supply complete training for all customers for free,we train in the following ways:

1. Engineers go to customer site to explain how to adjust, use and maintain the machine.

2. Customers can also come to our factory to learn the knowledge related to the machine.

3. Online remote control training or video training is available if customer no need send engineer.

Competitive Price

Competitive price thanks to the mass production and lean production

Remote control for global

Machine equipped with WIFI device, online solve software parameters setting problems.

Fast Delivery

Safe stock of standard parts of the machine guarantees the quick delivery of the machine

Wealth Of Experience

More than 18 years of professional manufacturing experience, more than 10 years exporting experience overseas.Products are exported to more than 100 countries and regions. We can give you best sorting solutions according to your raw material .



Customer Concerns

Question 1: What are your advantages compared with your competitors?

Answer:With rich industry experience and strict Product Quality Control systems, we provide:

1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.

Question 2: Are you a manufacturer?

Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.

Question 3: How to install and use the machine?

We will supply the installation instructions or videos and our engineers will train the operators.

Question 4. How long about the guarantee period?

Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.

Question 5: Do you have English Manual for each machinery?

Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
