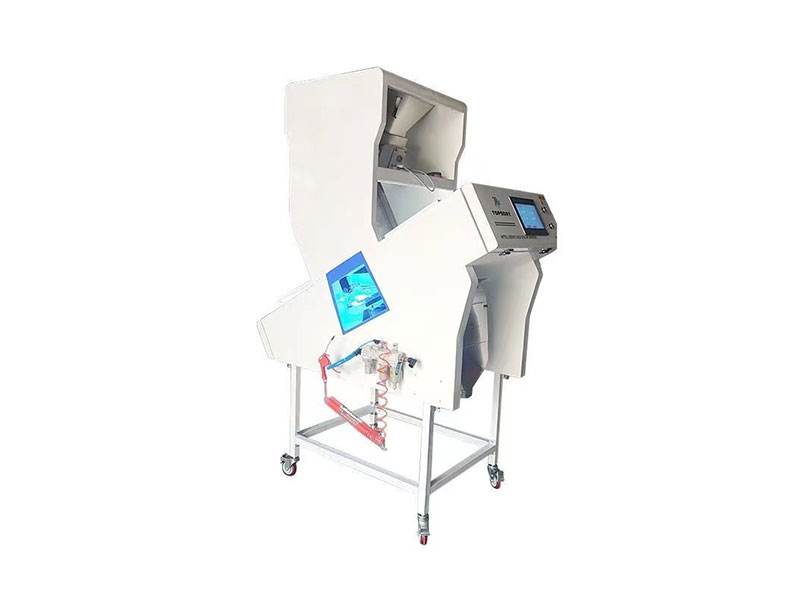

TOPSORT high-end multipurpose grain color sorter machine providing high end sorting solutions for all kinds of grains,such as white rice,brown rice,long rice,millet,wheat,corn,quinoa,rye,barley,can remove impurities from all grains.Are you interested in this product?
Order(MOQ) :
1 pcsPayment :
TT/LCProduct Origin :
Hefei,ChinaColor :
White,can customizeShipping Port :
Shanghai/NingboLead Time :
Within 3 working daysCertificate :
CEProduct Name :
Grain color sorterWarranty :
2 yearsMachine Function :
Color sorting ,remove impurities from grainGrain color sorter machine is based on the fact that different colors have different optical properties. Colour sorter use CCD cameras and sensors to detect the color of each grain of rice, and then sorts them into different bins according to their color. The sorting process is done by using an air jet system which separate the grains according to their colors, you can see the follow structure schematic.
Color Sorter Application
Grain Color Sorting Machine Details Show
Grain Color Sorter Core Advantages
More Models You Can Choose
Model | Power(KW) | Capacity (T/H) | Sorting accuracy | Power vottage (V/HZ) | Air pressure (Mpa) | Air consumption (M3/MIN) | Dimensions (MM) | Weight(KGS) |
MINI-32 | 0.5 | 0.5-1 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <0.5 | 420*1100*1820 |
100 |
R1-64 | 0.8 | 1-2.5 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <1.0 | 880*1504*1760 |
300 |
R2-128 | 1.3 | 2-4 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <2.0 | 1314*1504*1760 | 400 |
R3-192 | 1.9 | 3-6 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <3.0 | 1650*1504*1760 | 500 |
R4-256 | 2.4 | 4-8 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <4.0 | 1986*1504*1760 | 650 |
R5-320 | 3.0 | 5-10 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <5.0 | 2322*1504*1760 | 800 |
R6-384 | 3.6 | 6-12 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <5.5 | 2658*1504*1760 | 1000 |
R7-448 | 4.1 | 7-14 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <6.0 | 2994*1504*1760 | 1200 |
R8-512 | 4.7 | 8-16 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <6.5 | 3330*1504*1760 | 1400 |
R10-640 | 5.8 | 10-20 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <8.0 | 3666*1504*1760 | 1800 |
Choose TOPSORT Color Sorter, Really Rest Assured
* Grain professional AI algorithm, easy to select moldy grain, light water yellow grains.
* Nano-level ultra-high-definition recognition system, micro-color difference recognition enhancement, light mold particles easily rejected.
* Color + shape sorting, can reject different colors and shapes, high net selection rate.
* Full coverage gradual air purification, water, oil, dust full filtration, no omission, zero pollution, comes with ash cleaning system, real-time inductive ash cleaning, zero delay, more clean。
* Integrated anti-collision and non-destructive design, soft landing and flexible discharge, effectively reducing the material broken, food-grade contact materials, the whole process of safety care, health quality is guaranteed
* Intelligent dimming system, using low-temperature concentrated LED light source, intelligent dimming, 16 million kinds of color mixing, energy saving and more durable; matching AI color restoration technology, independent correction of color correction, high restoration, ultra-fidelity.
* Frequency conversion blowing system, equipped with intelligent frequency conversion solenoid valve, 13 billion times long-lasting spraying, no air leakage, low power consumption; application of adaptive spraying technology, 0.05 milliseconds fast response, no tail gas, low take-out.
