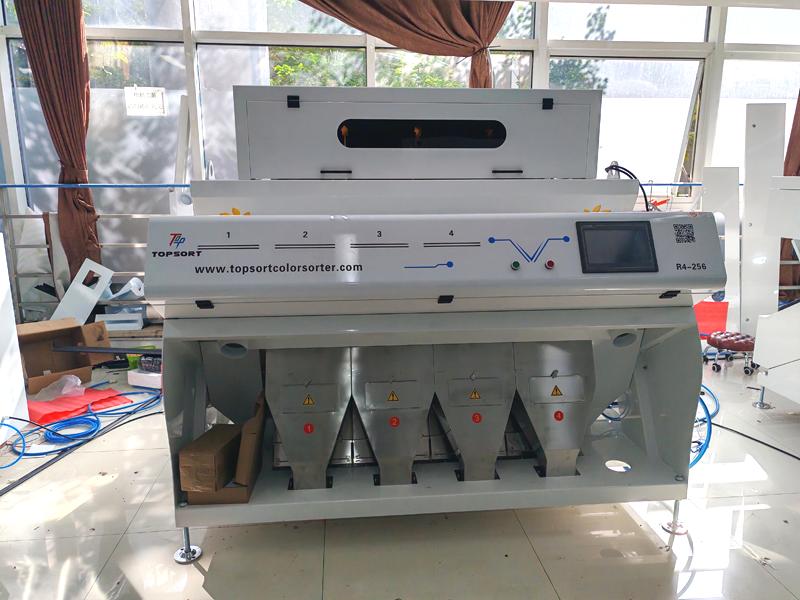

Topsort Manganese Ore Color Sorter is used on the production line in ore processing . They separate items by their colors, detecting the colours of things that pass before them.Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.
Order(MOQ) :
1Payment :
TT/LCProduct Origin :
Hefei,ChinaColor :
White,can customizeShipping Port :
Shanghai/NingboLead Time :
Within 7 working daysCertificate :
CEProduct Name :
Mineral color sorterWarranty :
2 yearsMachine Function :
Color/size/shape sorting
TOPSORT Color Sorter Features
1. More high-end CCD camera, can distinguish flaw which are less than 0.01 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and reasonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room temperature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distinguish all kinds of atherosclerosis grain easily and totally improved the accuracy of selection.
5. Humanization true color screen, visual effect is more clear, operation is more easier.
6. Professional high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.
TOPSORT Color Sorter Core Components
More Models You Can Choose
| Model | Power(KW) | Capacity (T/H) | Sorting accuracy | Power vottage (V/HZ) | Air pressure (Mpa) | Air consumption (M3/MIN) | Dimensions (MM) | Weight(KGS) |
| MINI-32 | 0.5 | 0.5-1 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <0.5 | 420*1100*1820 |
100 |
| R1-64 | 0.8 | 1-2.5 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <1.0 | 880*1504*1760 |
300 |
| R2-128 | 1.3 | 2-4 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <2.0 | 1314*1504*1760 | 400 |
| R3-192 | 1.9 | 3-6 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <3.0 | 1650*1504*1760 | 500 |
| R4-256 | 2.4 | 4-8 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <4.0 | 1986*1504*1760 | 650 |
| R5-320 | 3.0 | 5-10 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <5.0 | 2322*1504*1760 | 800 |
| R6-384 | 3.6 | 6-12 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <5.5 | 2658*1504*1760 | 1000 |
| R7-448 | 4.1 | 7-14 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <6.0 | 2994*1504*1760 | 1200 |
| R8-512 | 4.7 | 8-16 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <6.5 | 3330*1504*1760 | 1400 |
| R10-640 | 5.8 | 10-20 | ≥99.999% | 220V/50HZ/60HZ | 0.6-0.8 | <8.0 | 3666*1504*1760 | 1800 |

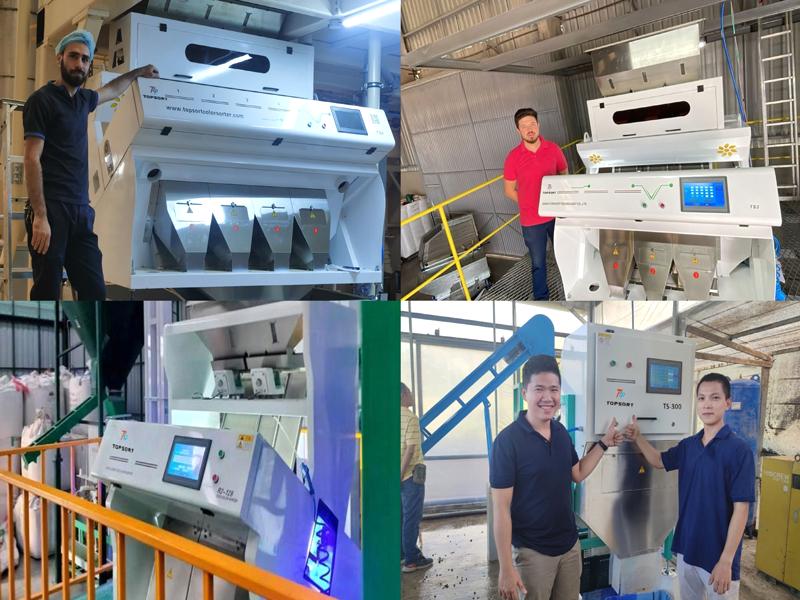

Customer Cases
Why choose Topsort Vision Color Sorter?
1. Over 18 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
This is high quality ore color sorter. The ore enters the conveyor belt mechanism through the hopper mechanism and is transferred to the belt for sorting, which adopts mechanical automatic sorting and reduces the staff labor . With small drop, more materials can be sorted.
read More
TOPSORT double-layer wet ore color sorting machine is designed for the purification of 10-50mm wet ore particles with high performance. The ore enters the conveyor belt mechanism through the hopper mechanism and is transferred to the belt for sorting, which adopts mechanical automatic sorting and reduces the staff labor . With small drop, more materials can be sorted.
read More
TOPSORT ore colour sorter machine is designed for the purification of 10-50mm wet ore particles with high performance. The ore enters the conveyor belt mechanism through the hopper mechanism and is transferred to the belt for sorting, which adopts mechanical automatic sorting and reduces the staff labor . With small drop, more materials can be sorted.
read More
TOPSORT ore quartz powder color sorter powder sorting machine provide sorting solutions for the quartz/silica powder range from 16mesh-120mesh. Double layer for re-sorting, low take-out ratio, high sorting accuracy,your best choose!
read More
TOPSORT dry stone color sorters Providing sorting solutions for the ore size range from 10 - 40mm and 4-16mesh, have been widely used in intelligent separation and supporting services of industrial raw materials such as lithium,ore, plate quartz sand ,mineral etc, and have been widely praised by customers.It can identity discoloured rejected quartz like black ,yellow ,grey out from good one.
read More
TOPSORT provides high-reliability, high-quality, safe and easy-to-operate material sorting technology solutions for customers in the global material sorting field.The TS-300 is a newly designed third generation integrated horizontal belt color sorter for sorting ore.
read More
Topsort Manganese Ore Color Sorter is used on the production line in ore processing . They separate items by their colors, detecting the colours of things that pass before them.Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.
